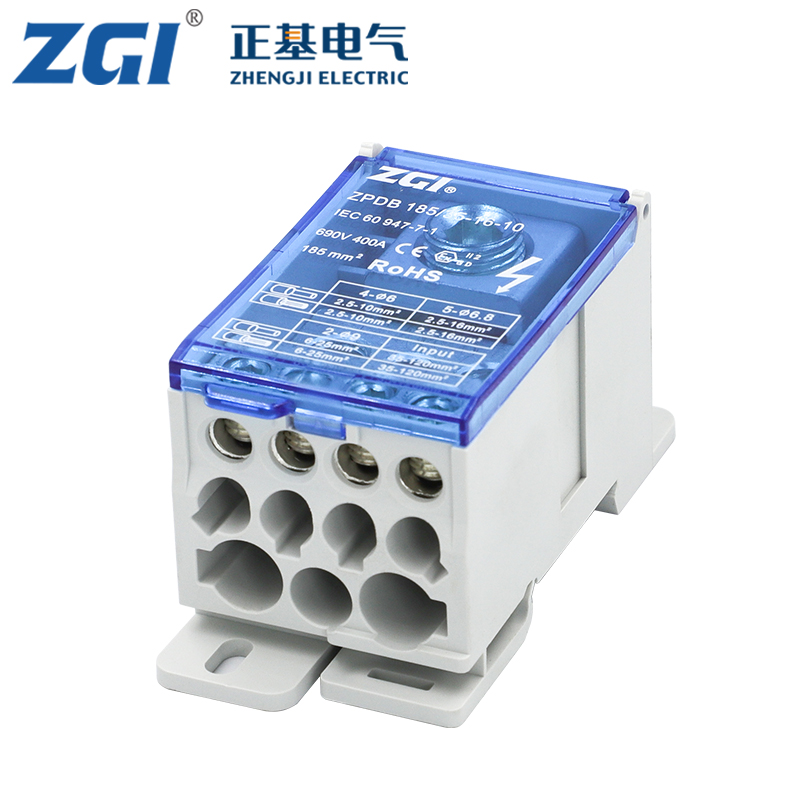

产品特色

• 镀锡铜或铝模块可连接铜或铝导体
• 可拆卸铰链式螺钉固定盖
• 设计允许进行导体目视检查和连接确认
• 模块化插接结构用于组建多级分线盒
• 可直接夹到 DIN 轨上或使用螺钉安装至面板
• 填充率 95%
• 符合《电气、电子设备中限制使用某些有害物质指令》(RoHS) 标准
• Halogen free plastic housing excluding the blue protection cover

技术指标

Part Number	ZPDB 185-35-16-10
表面处理	镀锡
最大额定电流，IEC	400 A
最大额定电流，UL/CSA	335 A
接线端连接	电缆
负载端连接	11 根电缆
材料	铜 热塑性塑料
线路端最大导体规格, IEC	185 mm²
Load Side Max Conductor Size, IEC	35 mm²
最大工作电压，IEC(Ui)	1,000 VAC/DC
最大工作电压，UL(Vin)	600 V
短期耐受电流(Icw) 1s	24.5 kA
Peak Short Circuit Current (Ipk)	51 kA
额定限制短路电流 (Icc)	24.3 kA
短路电流额定值 (SCCR)	100 kA
线路端连接数量	1
Line Side Compact Stranded Wire Size	95 - 185 mm²
线路端电线尺寸	3/0 – 400 kcmil
负载端连接数量	11
负载端压缩绞合线尺寸	(2) 6 - 35 mm² (5) 2,5 - 16 mm² (4) 2,5 - 10 mm²
负载端绞合线尺寸 - 金属箍	(2) 6 - 25 mm² (5) 2,5 - 16 mm² (4) 2,5 - 10 mm²
负载端电线尺寸	(2) #10 - #1 (5) #14 - #4 (4) #14 - #6
外壳防护等级	IP 20
深度	50 mm
高度	96 mm
宽度	49 mm
元件重量	0.4 kg
认证详情	UL® 1059
易燃性等级	UL® 94V-0
符合规定	IEC® 60947-7-1
Certifications	CE, ERIFLEX UD CSA 70044370 cURus EAC 02942 (俄国) RoHS
Standard Packaging Quantity	1 pc
UPC	78285659423
EAN-13	8711893042689

分线盒、接线盒和接线端子的设计指南
根据环境*温度 (°C) 降容以保持 85°C 的工作温度
环境温度 (°C)	30°	35°	40°	45°	50°	55°	60°	65°	70°	75°
降容系数 (d)	1	1	1	0.94	0.88	0.82	0.75	0.67	0.58	0.47
*柜子内端子排周围的环境

在分线盒（最大额定电流可达160A，IEC）进线侧使用跳线可以增加输出回路。
UL 认证的最大工作电压为1000V AC/DC的分线盒特别适合光伏行业。
Blue protection cover is less than 7% of the overall product weight.

FEATURES

• Tinned copper or aluminum block allows for copper or aluminum conductor direct connections, or using ferrule
• Screw retaining cover is hinged and removable
• Design allows for visual inspection of conductor and confirmation of connection
• Modular snap-together blocks for building multi-pole power blocks
• Easily clips onto DIN rail or mounts to panel with screws
• 95% fill ratio
• RoHS compliant
• Halogen free plastic housing excluding the blue protection cover

SPECIFICATIONS

Part Number	ZPDB 185-35-16-10
Finish	Tinned
Max Current Rating, IEC	400 A
Max Current Rating, UL/CSA	335 A
Line Side Connection	Cable
Load Side Connection	11 Cables
Material	Copper Thermoplastic
Line Side Max Conductor Size, IEC	185 mm²
Load Side Max Conductor Size, IEC	35 mm²
Max Working Voltage, IEC (Ui)	1,000 VAC/DC
Max Working Voltage, UL (Vin)	600 V
Short Term Withstand Current (Icw) 1s	24.5 kA
Peak Short Circuit Current (Ipk)	51 kA
Rated Conditional Short-Circuit Current (Icc)	24.3 kA
Short Circuit Current Rating (SCCR)	100 kA
Line Side Number of Connections	1
Line Side Compact Stranded Wire Size	95 - 185 mm²
Line Side Wire Size	3/0 – 400 kcmil
Load Side Number of Connections	11
Load Side Compact Stranded Wire Size	(2) 6 - 35 mm² (5) 2,5 - 16 mm² (4) 2,5 - 10 mm²
Load Side Stranded Wire Size - Ferrule	(2) 6 - 25 mm² (5) 2,5 - 16 mm² (4) 2,5 - 10 mm²
Load Side Wire Size	(2) #10 - #1 (5) #14 - #4 (4) #14 - #6
Enclosure Rating	IP 20
Depth	50 mm
Height	96 mm
Width	49 mm
Unit Weight	0.4 kg
Certification Details	UL® 1059
Flammability Rating	UL® 94V-0
Complies With	IEC® 60947-7-1
Certifications	CE, ERIFLEX UD CSA 70044370 cURus EAC 02942 (Russian Federation) EN 45545 HL3/R23, UD/BD/TD/SB RoHS
Standard Packaging Quantity	1 pc
UPC	78285659423
EAN-13	8711893042689

Design Guideline for Distribution Blocks, Power Blocks and Power Terminals
Derating according to Ambient* Temperature (°C) to maintain working temperature of 85°C
Ambient Temperature (°C)	30°	35°	40°	45°	50°	55°	60°	65°	70°	75°
Derating Coefficient (d)	1	1	1	0.94	0.88	0.82	0.75	0.67	0.58	0.47
*environment around the terminal blocks inside the enclosure

Increase the number of outputs with one input using a jumper on blocks with a Max Current Rating, IEC up to 160 A.
Blocks with 1,000 VAC/DC Max Working Voltage, UL are ideal for solar applications.
Blue protection cover is less than 7% of the overall product weight.
